Waterproof 5V Rectangular LED LPD6803 Pixel RGB Module Light 50 Nodes

Be the first to review this product

Availability: In stock


Quick Overview

Waterproof 5V IP68 Rectangular LED LPD6803 Pixel RGB Module Light 50 Nodes is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

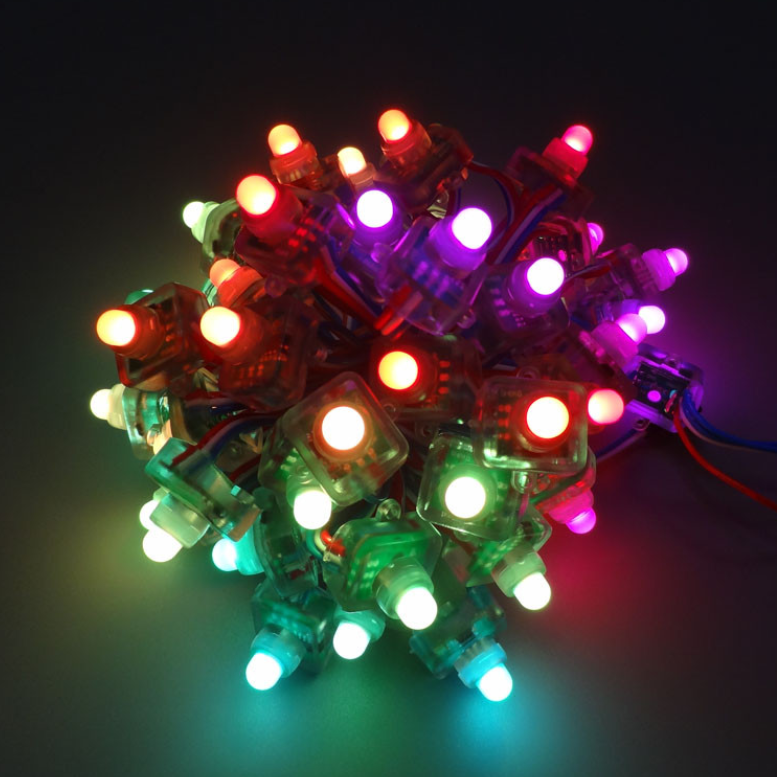

Waterproof 5V Rectangular LED LPD6803 Pixel RGB Module Light 50 Nodes

Double click on above image to view full picture

Zoom Out
Zoom In

More Views



Programmable by software

Individually control

Conformal coating, PVC glue protection

IP68 waterproof protection

Easy installation (punching 12mm hole on metal panel)

50pcs per set


IC type: LPD6803

LED quantity: 1 piece

LED type: 1 piece 8mm strawhat LED

Working voltage: DC 5V

Working current: 60 mA

Working consumption: 0.3W

Protection grade: IP68 waterproof

The length of this light string is approx 5 meters (16.4ft), the length between each LED is about 10cm (0.33ft).

Working temperature: -40°C~ 60°C

Viewing angle: >90 degrees

Lifespan: MTBF>50000 hours

Dimension: 25*18.5*22mm

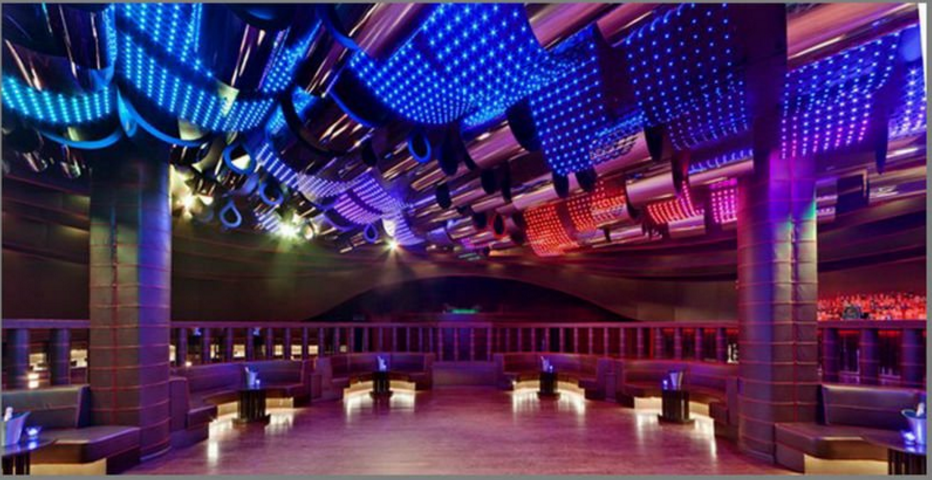

Meets the general lighting, environment such as: outdoors advertising, Christmas decoration

RGB pixels are digitally controllable lights you can set to any color, or animate.

Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.

There are four flanges moulded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.

They are typically used to make outdoor signs. Compared to our other 20mm LED dots.

These are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

A 3-conductor cable connects the pixels.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.

The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.

Package Included:

1 String of 50 Nodes Waterproof 5V IP68 Rectangular LED LPD6803 Pixel RGB Module Light
