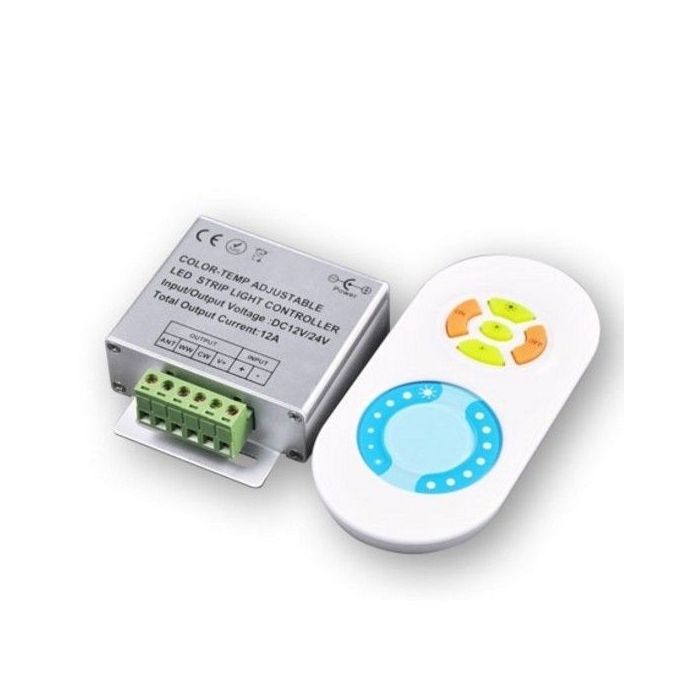

12A 433MHz Touch 5 Key Color Temperature and Brightness Adjust Controller
Supply voltage: DC12-24V
Connection mode: common anode
Remote:114×56×22mm Controller: 85×64×24mm
Gross weight: 165g
Static power consumption: <1W
Output power: 12V<144W, 24v<288w
6 amp sustained maximum per circuit= 72 watts/circuit (12 VDC) or 144 watts/circuit (24 VDC.)
150 Hertz pulse dimming ensures no flicker.
Speaker-type input and output connections on dimming unit.
Screw tabs on dimming unit for mounting.
RF signal goes through walls. Range is over 65 feet in a benign electromagnetic environment.
20-step dimming.
Each dimmer and remote control are matched to operate with each other.
You can reset the matching if you want to put more than one dimming unit on a remote control.
Remote control requires 3 AAA batteries, which are included.
Remote control is 4.5" x 2.2" x 0.75"; Dimming unit is 3.3" x 2.5" x 1".
Use Tips:
1. Connect the load wire at first, following by the power wire; Please
ensure short circuit can not occur between connecting wire before you turn on the power;
2.The supply voltage of controller ranges in DC12V~DC24V, it may burn
out the controller once exceed the voltage ranges.
Package include:
1 Set of 12A 433MHz Touch 5 Key Color Temperature and Brightness Adjust Controller
CE and RoHS approved
