Input voltage:.............DC5v;
Power: .......................60leds/m----18watt/meter
LED resource:.............WS2813 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: ...............each LED is separately controlled
IC Type: .....................improved version ws2813 IC(built inside the 5050 smd rgb led)
of IC: ..................(1 IC drives 1 led chip);
Pixels:......... 60/meter;
Grey scale: ................256;
Bits/color: ...................8-bits/color;
FPCB size: ....................Width: 10mm, High: 2.5mm;
FPCB color: ......... BLACK/White
Protection rate...... IP20/IP67
Colors: ........................Full color RGB, dream color changing;
Cuttable:......................every LED is cuttable;
Package: ....................in anti-static bag,with 3M adhensive tape on the back
working temperature: -40 ~ 70 °C
Storage temperature: -50 ~ 80 °C
Source life: 50,000 hours
Protection Rate: Pls Choose
IP30 Non-Waterproof with 3M Tape on the back
IP65 Waterproof Dripping Glue with 3M Tape on the back
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
LED WS2813 Symphony light strip Function Description:
Happy control a single lamp, water, windows, rear meteor, chasing, pattern change animation, video, text, and so on.
Use of the lamp, in which a pixel bad, does not affect the normal operation of other lights so as not to affect the overall
results. Any color can show, random combinations into any pattern, in particular made light of the screen to use. No
separate address to write to the lamp can be achieved HTTP, installation easier. Meanwhile lamp beads which also
integrates a capacitive resistance, so that electronic components do not need to be on board the auxiliary light bar,
thus increasing the stability of the product.
Package Include:

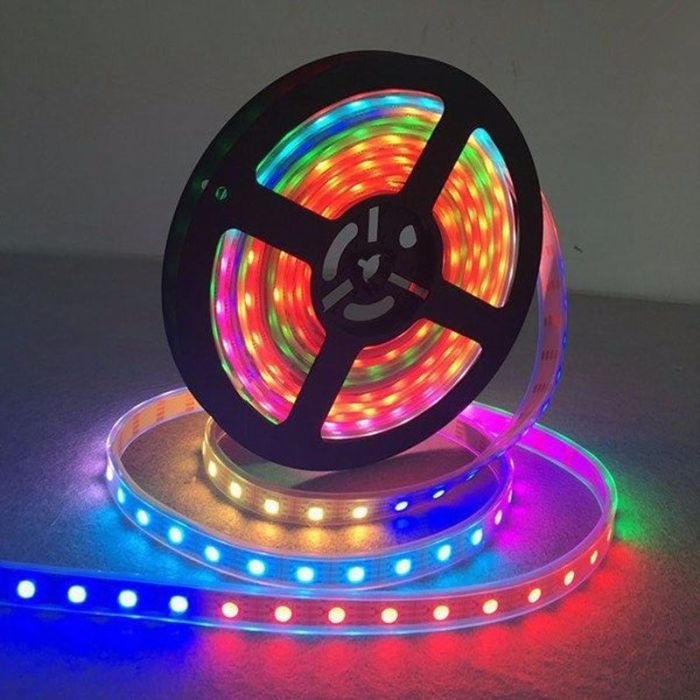

1 Piece of 5M WS2813 Led Pixel Strip 60leds/m 2813 IC 5050 RGB Light 16.4ft 300LEDs
CE and RoHS approved
