Feature function:
0 - 10V to PWM dimming signal conversion.
Optical isolation protection for input & output.
Compatible with many brand dimming systems.
Working voltage from DC12V~DC48V
Single output channel, Constant current 350mA or 700mA or 1050mA
Multi units can be worked together or use our power repeaters to control more lamps.
Product parameter
Product Model:BC-330-350
Input voltage:DC12V-DC48V
Max current load:350mA
Signal Input:0-10V analog dimming signal
Output Signal: PWM LED dimming signal
Max output power:1-12pcs 1W LED
Product Dimension:L125×W45×H36(mm)
Package Dimension: L131×W49×H49(mm)
Product Weight (G.W):90g
WProduct Model;BC-330-700
Input voltage:DC12V-DC48V
Max current load:700mA
Signal Input:0-10V analog dimming signal
Output Signal:PWM LED dimming signal
Max output power:1-12pcs 3W LED
Product Dimension:L125×W45×H36(mm)
Package Dimension:L131×W49×H49(mm)
Product Weight (G.W):90g
Product Model;BC-330-1050
Input voltage:DC12V-DC48V
Max current load:1050mA
Signal Input:0-10V analog dimming signal
Output Signal:PWM LED dimming signal
Max output power:1-12pcs 5W LED
Product Dimension:L125×W45×H36(mm)
Package Dimension:L131×W49×H49(mm)
Product Weight (G.W):90g
Package Included:

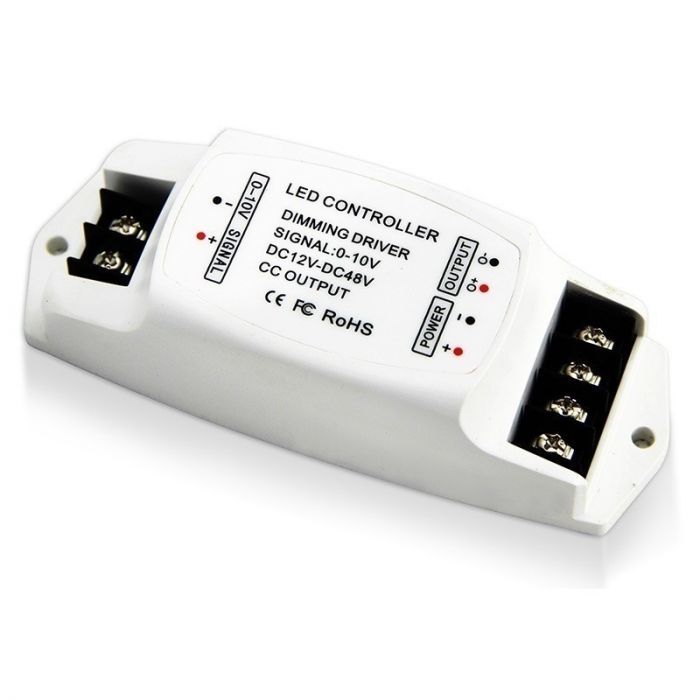

1 Piece of Bincolor BC-330-CC 0-10V PWM Dimmer Control Led Controller
CE and RoHS approved
