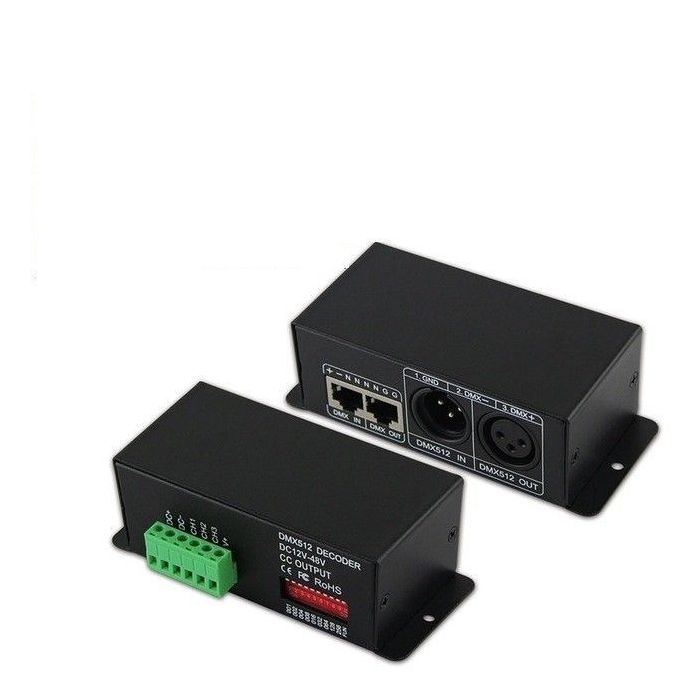

Bincolor BC-809-CC 3CH DMX512 LED Decoder Led Controller

$25.41
In stock
SKU
Bincolor BC-809-CC 3CH DMX512 LED Decoder Led Controller

Bincolor BC-809-CC 3CH DMX512 LED Decoder Led Controller is high quailty LED product for LED lighting decoration projects, For big order or customized order, Pls feel free to contact service@agoeu.com

Agoeu.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.

Specification

BC-809-CC  350mA

Feature function

1.Wide voltage input:DC12V-48V.

2.3 Output Channels, connect single/RGB color LED lamps.

3.0-100% brightness adjusting, 256 levels of grey scale per channel.

4.Standard DMX512 input protocol,set address with dip-switch.

5.10 testing modes,8 levels of changing speed.

6.350mA constant current output.



Product parameter

Product Model:BC-809-350

Input voltage:DC12V-48V

Max load current:350MA/CH*3

Driving LEDs:1-12pcs 1W LED

Grey Scale:256 levels/CH*3

Input signal:DMX512/1990

Output signal:3 Channels CC PWM

Decoder channels:3Ch or 4Ch (4th CH is shutter strobe)

DMX512 socket:StandardXLR-3R,RJ45 port

Product Dimension:L125*W52*H40(mm)

Weight (G.W):45g



BC-809-CC 700mA

Feature function:

1.3 Output Channels,connect single/RGB color LED lamps.

2.0-100% brightness adjusting,256 levels of grey scale per channel.

3.Standard DMX512 input protocol,set address with dip-switch.

4.Wide voltage input: DC12V-48V.

5.10 testing modes,8 levels of changing speed.

6.700mA constant current output.



Product parameter

Product Model:BC-809-700

Input voltage:DC12V-48V

Max load curren:700MA/CH*3

Driving LEDs :1-12pcs 3W LED

Grey Scale:256 levels/CH*3

Input signal:DMX512/1990

Output signal:3 Channels CC PWM

Decoder channels:3Ch or 4Ch (4th CH is shutter strobe)

DMX512 socket:StandardXLR-3R,RJ45 port

Product Dimension:L125*W52*H40(mm)

Weight (G.W):345g

Package Included:

1 Piece of Bincolor BC-809-CC 3CH DMX512 LED Decoder Led Controller

Bincolor_Controller_BC_809_CC_350mA_1

Bincolor_Controller_BC_809_CC_350mA_2

Bincolor_Controller_BC_809_CC_350mA_3

Bincolor_Controller_BC_809_CC_350mA_4

Bincolor_Controller_BC_809_CC_350mA_5

Bincolor_Controller_BC_809_CC_350mA_6

Bincolor_Controller_BC_809_CC_350mA_7



CE and RoHS approved
