DC12 24V 24A 4-Channel RGBW Signal Amplifier Repeater Aluminum Shel
Product Description:

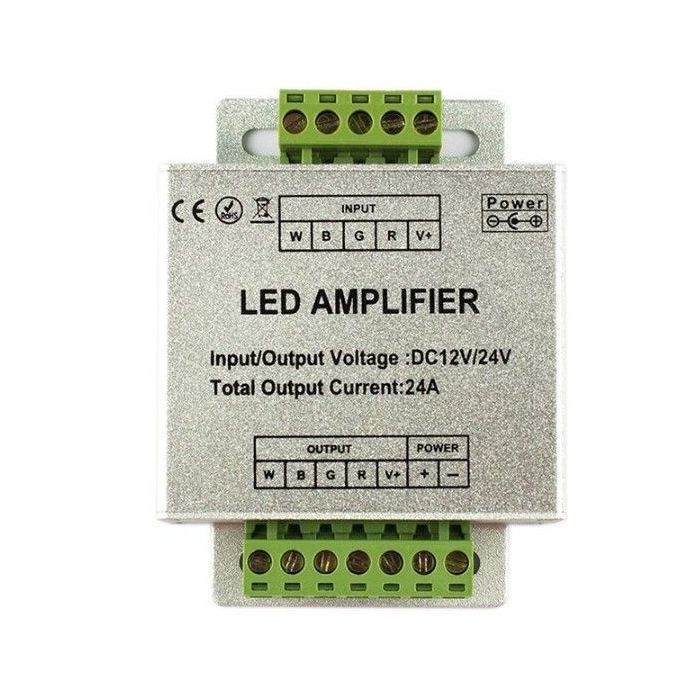

This 4 circuit Aluminum shell RGBW amplifier is suitable for all kinds of constant voltage led controller.
It can enlarge the led controller signal,and can receive the PWM(pulse width modulation)
to output the signal ,then it can make the same effect with the controller.when
add each additional amplifier, can connect and controlled twice more LED lights.
Theoretically, one controller can connector with thousands of this RGB amplifier, and can make the same effect.
Features:
Recieve RGBW signal from LED controller and send the signal to another group of LED source
Supply voltage: DC12V/24V
Max Load Current: 6A for each channel. Total Output of Current: 24A
Output: 4 circuit
Output power: max 288W(12V), max 576W(24V)
Technical Parameters:
Input voltage:DC12V/24V Optional
Connection mode:Common anode
Product's size:L81*W64*H24mm
Package size:L115*W70*H35mm
Net weight:90g
Gross weight:110g
Static power consumption:<1W
Working temperature:-20-60 centigrade
Package include:
1 Piece of DC12 24V 24A 4-Channel RGBW Signal Amplifier Repeater Aluminum Shel
CE and RoHS approved
