DL108 Leynew Led Controller DALI to 0/1-10V Rail Type Dimmer

$20.76
In stock
SKU
DL108 Leynew Led Controller DALI to 0/1-10V Rail

For more Leynew Controller, pls check here: https://www.agoeu.com/leynew-controller.html

If you need COB Led Strip, pls check here: https://www.agoeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoeu.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agoeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoeu.com

DL108 Leynew Led Controller DALI to 01-10V Rail Type Dimmer

DALI (Digital Addressable Lighting Interface) is an international standard , popular lighting control protocol, With digital addressing dimming, stable,

various dimming ways, easy to install, compatible with many big factories such characteristic.
This product adopts a standard DALI dimming signal to 0-10V dimming signal, dimming using standard IEC62386. LED dimming with the traditional way of comparison ,

with adjustable light a wide range of diverse dimming, dimming of high precision, check the current status LED (for example current brightness, power intensity ,

the minimum support brightness, address, ect),easy distributed control and so on.

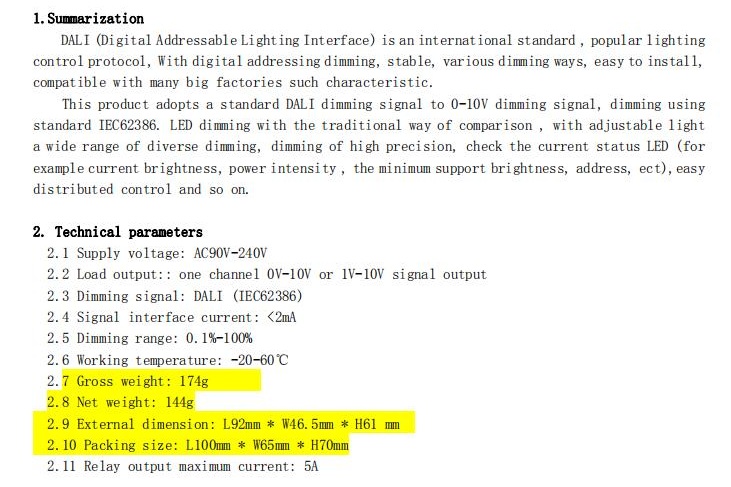

Technical parameters

Supply voltage: AC90V-240V

Load output:: one channel 0V-10V or 1V-10V signal output

Dimming signal: DALI (IEC62386)

Signal interface current: <2mA

Dimming range: 0.1%-100%

Working temperature: -20-60℃

Gross weight: 174g

Net weight: 144g

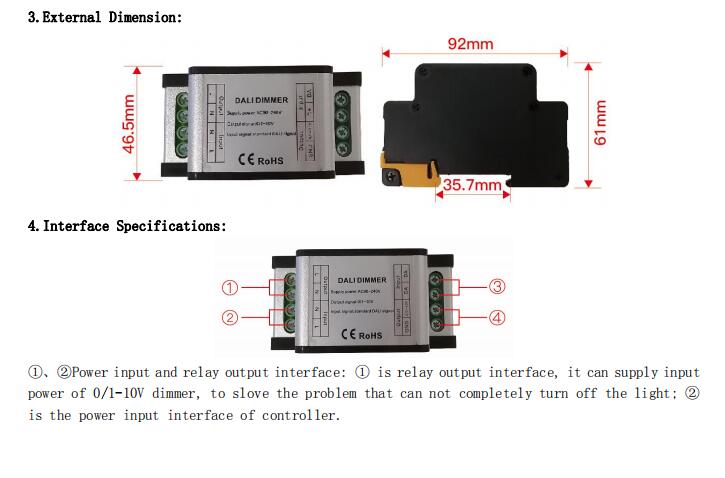

External dimension: L92mm * W46.5mm * H61 mm

Packing size: L100mm * W65mm * H70mm

Relay output maximum current: 5A

Package Included:

1 Piece of DL108 Leynew Led Controller DALI to 01-10V Rail Type Dimmer

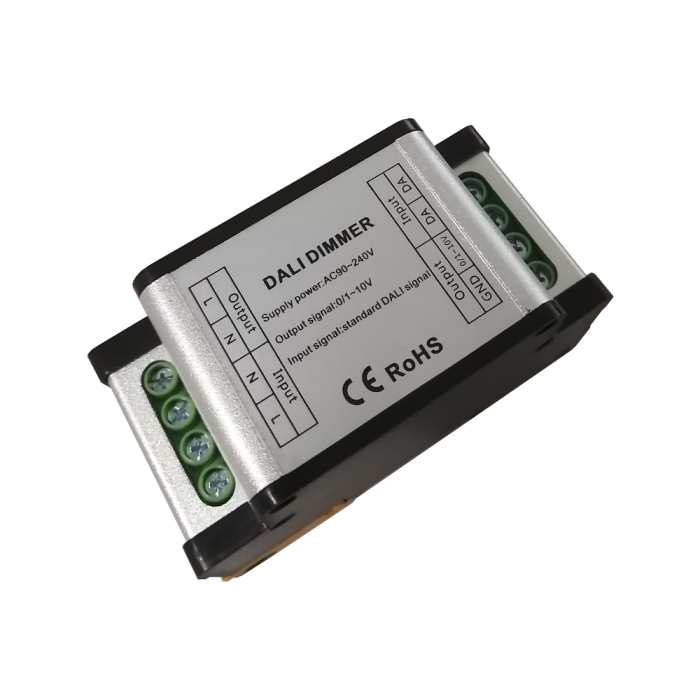

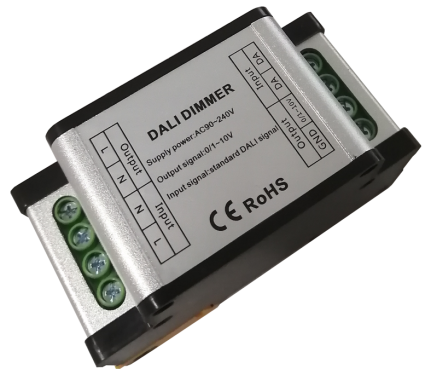

Leynew_Rail_type_DALI_to_0_1_10V_dimmer_DL108_LED_Controller_1

Leynew_Rail_type_DALI_to_0_1_10V_dimmer_DL108_LED_Controller_2

Leynew_Rail_type_DALI_to_0_1_10V_dimmer_DL108_LED_Controller_3

Leynew_Rail_type_DALI_to_0_1_10V_dimmer_DL108_LED_Controller_4

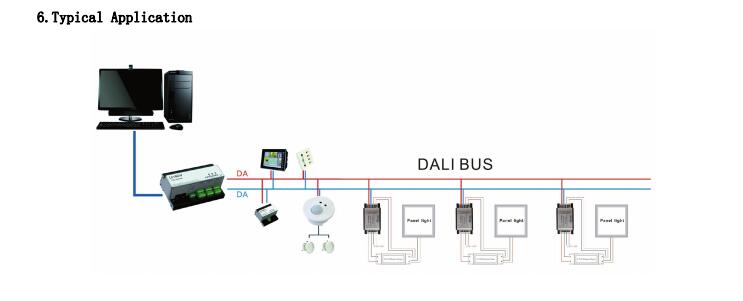

Leynew_Rail_type_DALI_to_0_1_10V_dimmer_DL108_LED_Controller_5


CE and RoHS approved
