Feature
Programable by software
Individually control
Conformal coating, PVC glue protection
IP68 waterproof protection rate
Easy installation (punching 9mm hole on metal panel)
50 pieces per string
Specification
Working voltage: DC 5V
Current: 60 mA
Power consumption: 0.3W
IC type: SM16703
LED quantity: 1 piece
LED type: 1 piece of 5mm F5 RGB strawhat LED, smaller than 8mm F8 strawhat LED
Working temperature: -40°C~ 60°C
Protection grade: IP68 waterproof
Dimension: 9mm small hole, higher resolution than 12mm punching hole
The length of this light string is approx 5 meters (16.4ft), the length between each LED is about 10cm (0.33ft).
Viewing angle: >90 degrees
Lifespan: MTBF>50000 hours
Applications
Meets the general lighting, environment such as: outdoors advertising, Christmas decoration
RGB pixels are digitally controllable lights you can set to any color, or animate.
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged.
There are four flanges moulded in so that you can 'push' them into a 9mm drill hole in any material up to 1.5mm/0.06" thick.
They are typically used to make outdoor signs. Compared to our other 12mm LED dots.
These are diffused 5mm F5 LEDs so they are not as bright but they color mix a little nicer.
A 3-conductor cable connects the pixels.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades).
The pixels must be clocked by a micro controller.
The pixels use 5mm F5 diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
Package Included:

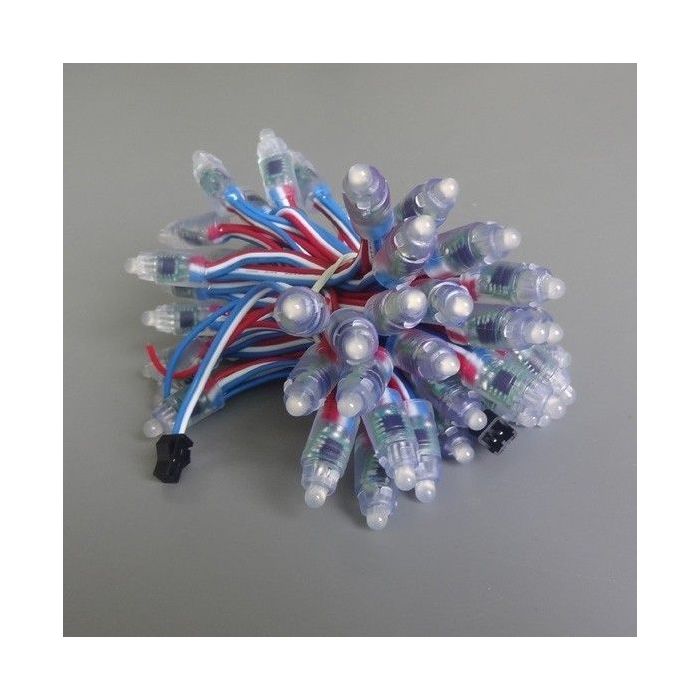

1 String of 50pcs IP68 5V Addressable SM16703 LED RGB Pixel 9mm Module Light
CE and RoHS approved
