Ltech D4A D4B Led Controller Control Dmx Rdm 4CH CV Decoder Driver

$16.70
In stock
SKU
Ltech D4A D4B DMX RDM 4 Channels Constant Coltage Decoder
  • Buy 15 for $15.87 each and save 5%

For more DMX512/RDM Controller Driver, pls check here: https://www.agoeu.com/ltech-controller/DMX512/RDM-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoeu.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoeu.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoeu.com

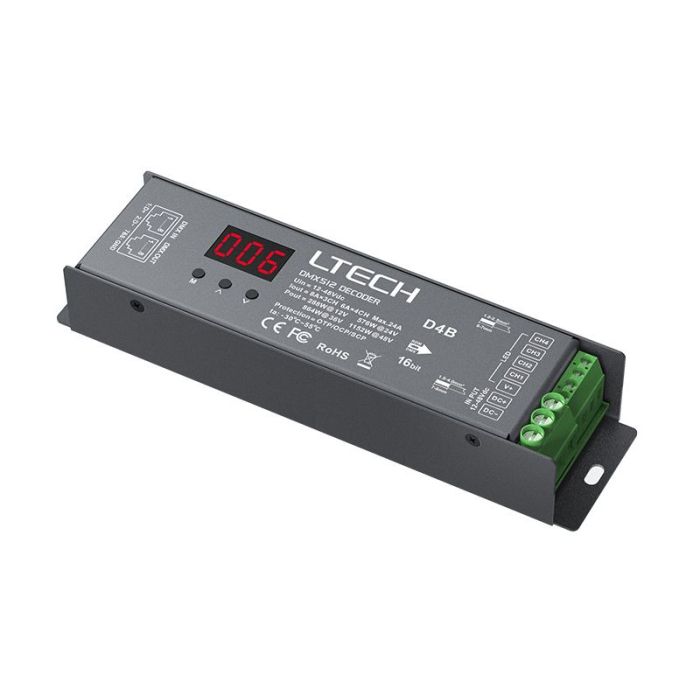

Ltech D4A D4B Led Controller Control Dmx Rdm 4CH CV Decoder Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

D4A is default, D4B is for optional

Standard DMX/RDM interfaces; Set address via the LCD screen and buttons;

RDM protocol; Browse and set parameters, change DMX address, and recognize devices via a RDM master;

DMX mode and customized mode can be switched;

PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz (default is 1800Hz);

16bit (65536 levels)/8bit (256 levels) gray scale optional;

Two dimming mode options: standard and smooth dimming;

Set 1/2/3/4 DMX channel output (default is 4 channel output);

Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels;

Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity;

Short circuit, over-temperature, over-current protection and auto recovery;

D4A has green terminal DMX interfaces, D4B has RJ-45 DMX interfaces.

Input signal    DMX512, RDM

Input Voltage    12-48V

Output Current    8A×3CH 6A×4CH Max.24A

Output Voltage    4×(12-48V)

Output Power    288W@12V 576W@24V 864W@36V 1152W@48V

Dimming Range    0-100%

Working Temp.    -25°C-55°C

Dimensions(L×W×H)    L175×W46×H30(mm)

Package Size(L×W×H)    L187×W52×H36(mm)

Weight (G.W)    325g±5g

Protection    Short circuit, over temperature, over current protection, auto recovery.

Package Included:

1 Piece of Ltech D4A D4B DMX RDM 4 Channels Constant Coltage Decoder Drivers

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
