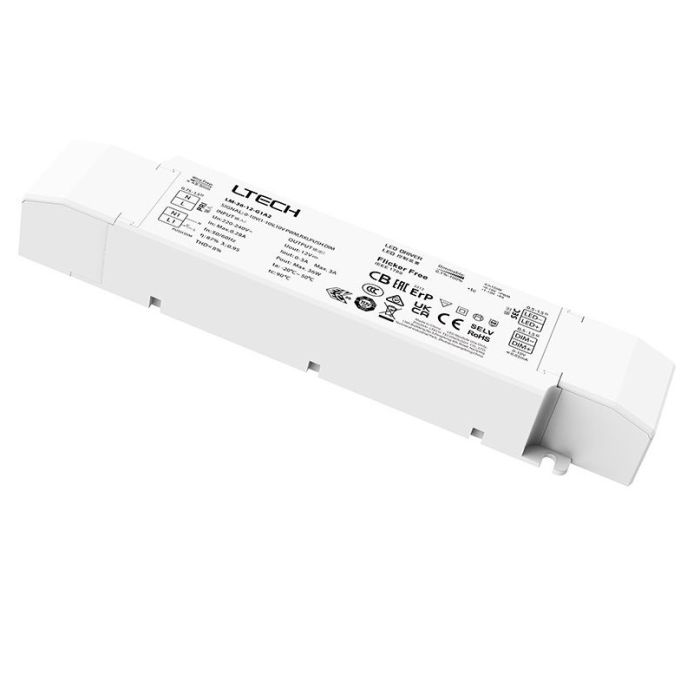

Ltech LM-36-12-G1A2 LM-36-24-G1A2 CV 0/1-10V LED Dimming Driver Controller

$17.11
In stock
SKU
Ltech LM-36-12-G1A2 LM-36-24-G1A2 CV 0/1-10V LED Dimming
  • Buy 50 for $0.00 each and save 100%

For more 0/1-10V Controller Driver, pls check here: https://www.agoeu.com/ltech-controller/0-1-10v-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoeu.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoeu.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoeu.com

Ltech LM-36-12-G1A2 LM-36-24-G1A2 CV 0/1-10V LED Dimming Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight.

Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Dimming interfaces: 0-10V(1-10V/10V PWM/RX), Push DIM.

Automatically recognize 0-10V and 1-10V input signals.

Ultra-low consumption of 0-10V ports < 0.05mA.

Dimming range: 0~100%, dimming dowm to 0.1%.

Flicker-free with high frequency exemption level in 0~100% dimming process.

With soft-on and fade-in function, bringing more comfortable visual experiences.

High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.

Dimming interfaces have photoelectric isolation that are compliant with the latest safety standards and more secure and reliable.

Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently protects the lifetime the driver.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Suitable for lamp applications of indoor I/II/III types.

Up to 50000-hour life time.


 LM-36-12-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    200-240Vac / 200-280Vdc

Power Factor:     PF>0.95/230Vac , at full load

Efficiency:    87%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 3A

Output Power:    0~36W

Dimming Range:    0~100%, dimming down to 0.1%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS

Warranty:    5 years


LM-36-24-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    200-240Vac / 200-280Vdc

Power Factor:     PF>0.95/230Vac , at full load

Efficiency:    88%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 1.5A

Output Power:    0~36W

Dimming Range:    0~100%, down to 0.1%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS

Warranty:    5 years

Package Included:

1 Piece of Ltech LM-36-12-G1A2/LM-36-24-G1A2 CV 0/1-10V LED Dimming Driver Controller

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
