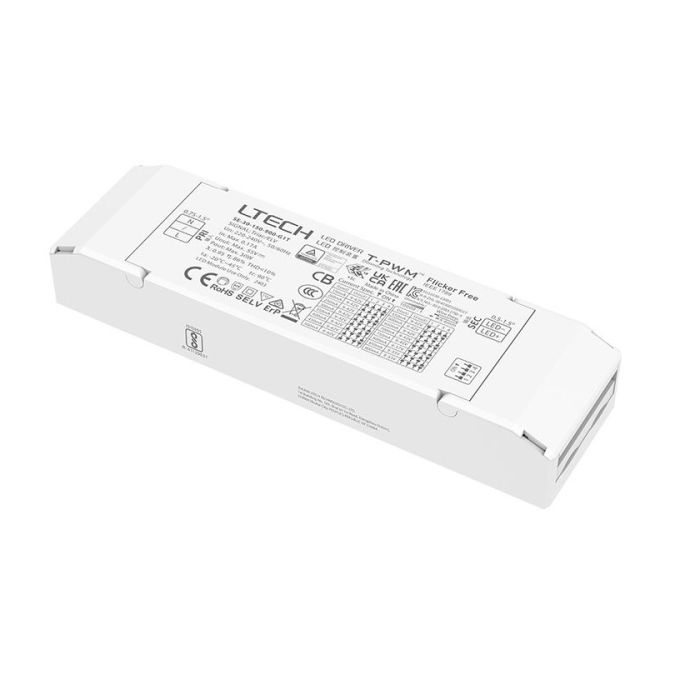

Ltech SE-30-150-900-G1T SE-40-300-1050-G1T Constant Current Triac LED Driver

$12.25
In stock
SKU
Ltech SE-30-150-900-G1T SE-40-300-1050-G1T Constant Current
  • Buy 50 for $11.76 each and save 4%

For more 0/1-10V Controller Driver, pls check here: https://www.agoeu.com/ltech-controller/non-dimmable-drivers-controller.html

If you need COB Led Strip, pls check here: https://www.agoeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoeu.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoeu.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoeu.com

Ltech SE-30-150-900-G1T SE-40-300-1050-G1T Constant Current Triac LED Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.

Small size and light weight. The clamshell design and screwless type for strain-relief.

Support Leading edge(Triac), Trailing edge(ELV).

With soft-on and fade-in dimming function, enhancing your visual comfort.

T-PWMTM dimming technology allows continuous and flicker-free images under high-speed photography.

Dimming from 0~100%, down to 0.01%.

The whole dimming process is flicker-free with high frequency exemption level.

Multiple current levels and wide voltage range. Suitable for different power of LEDs.

Class 2 LED driver, Safety Extra Low Voltage (SELV).

Innovative thermal management technology intelligently protects the life of the LED driver.

Overheat, overload, short circuit protection and automatic recovery.

Suitable for ClassI/II/III indoor light fixtures.

Up to 50000 hours life time.



SE-30-150-900-G1T
Rubycon capacitor

Dimming interface:    Triac/ELV

Input voltage:    220-240Vac

Power Factor:    PF>0.95/230Vac, at f
ull load
Efficiency(typ.):    >86%@750mA

Strobe Level:    High frequency exemption level

Output Voltage:    9-42Vdc

Output Current:    150-900mA

Output Power:    1.35W-30W

Dimming range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,BIS,ROSH

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant(DC)

1.35-6.3W

9-42V

150mA

1.8-8.4W

9-42V

200mA

2.25-10.5W

9-42V

250mA

2.7-12.6W

9-42V

300mA

3.15-14.7W

9-42V

350mA

3.6-16.8W

9-42V

400mA

4.05-18.9W

9-42V

450mA

4.5-21W

9-42V

500mA

4.95-23.1W

9-42V

550mA

5.4-25.2W

9-42V

600mA

5.85-27.3W

9-42V

650mA

6.3-29.4W

9-42V

700mA

6.75-30W

9-40V

750mA

7.2-29.6W

9-37V

800mA

7.65-29.75W

9-35V

850mA

8.1-29.7W

9-33V

900mA



SE-40-300-1050-G1T
Rubycon capacitor

Dimming interface:    Triac/ELV

Input voltage:    220-240Vac

Power Factor:    PF>0.95/230Vac, at full load

Efficiency(typ.):    >88%@950mA

Strobe Level:    High frequency exemption level

Output Voltage:    9-42Vdc

Output Current:    300-1050mA

Output Power:    2.7W-40W

Dimming range:    0~100%, down to 0.01%

Certification:    CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,BIS,ROSH

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant(DC)

2.7-12.6W

9-42V

300mA

3.15-14.7W

9-42V

350mA

3.6-16.8W

9-42V

400mA

4.05-18.9W

9-42V

450mA

4.5-21W

9-42V

500mA

4.95-23.1W

9-42V

550mA

5.4-25.2W

9-42V

600mA

5.85-27.3W

9-42V

650mA

6.3-29.4W

9-42V

700mA

6.75-31.5W

9-42V

750mA

7.2-33.6W

9-42V

800mA

7.65-35.7W

9-42V

850mA

8.1-37.8W

9-42V

900mA

8.55-39.9W

9-42V

950mA

9-40W

9-40V

1000mA

9.45-39.9W

9-38V

1050mA



Package Included:

1 Piece of Ltech Constant Current Triac LED Driver

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
