Ltech WP-804 Waterproof Led Controller DMX RDM CV Decoder

$29.81
In stock
SKU
Ltech WP-804 Waterproof Led Controller DMX RDM CV Decoder
  • Buy 15 for $28.62 each and save 4%

For more DMX512/RDM Controller Driver, pls check here: https://www.agoeu.com/ltech-controller/DMX512/RDM-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agoeu.com/led-light-strip/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agoeu.com/milight-products.html

If you need LETCH LED Controller, pls check here: https://www.agoeu.com/ltech-controller.html

If you need LTECH LED Dimmable Driver, pls check here: https://www.agoeu.com/ltech-led-dimmable-driver.html

If you need MeanWell Power Supply, pls check here: https://www.agoeu.com/meanwell-power-supply.html

If you need Power Adapter & Power Supply, pls check here: https://www.agoeu.com/power-adapter-power-supply.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agoeu.com

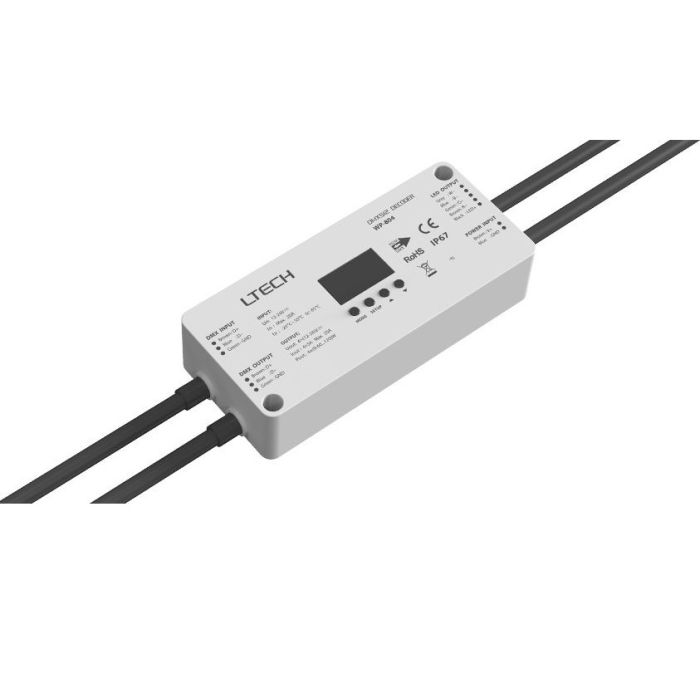

Ltech WP-804 Waterproof Led Controller DMX RDM CV Decoder

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

WP-804 uses the RDM protocol and supports DMX512/RDM signal bi-directional communication.
The RDM pro- tocol enables the remote management such as reading / writing DMX address (For
RDM functions the DMX master must be RDM compliant). WP-804 has 4 channel output with max.

5A output for each channel. It can be used to control DIM, CT, RGB, RGBW constant voltage lights
and achieve 0-100% dimming or various lighting effects. WP-804 can be operated in DMX mode or in customized mode.

It is easy to set address via digital display and buttons. WP-804 is a waterproof decoder with IP67 rating, sui- table for outdoor and damp environments.

Input signal    DMX512/RDM

Input Voltage    12-24V

Output Current    Max. 5A/CH Max. 20A(4CH)

Output Power    (0-60...120)W/CH Max. 480W(4CH)

Dimming Range    0-100%

Working Temp.    -20°C~50°C

Dimensions(L×W×H)    L164×W70×H36mm

Package Size(L×W×H)    L193×W127×H41mm

Weight (G.W)    690g

Protection    Short circuit, over temperature, over current protection, auto recovery.

Package Included:

1 Piece of Ltech WP-804 Waterproof 4CH Constant Voltage DMX RDM Decoder Drivers

Reliable Top Quality with 5 Years Warranty


CE and RoHS approved
