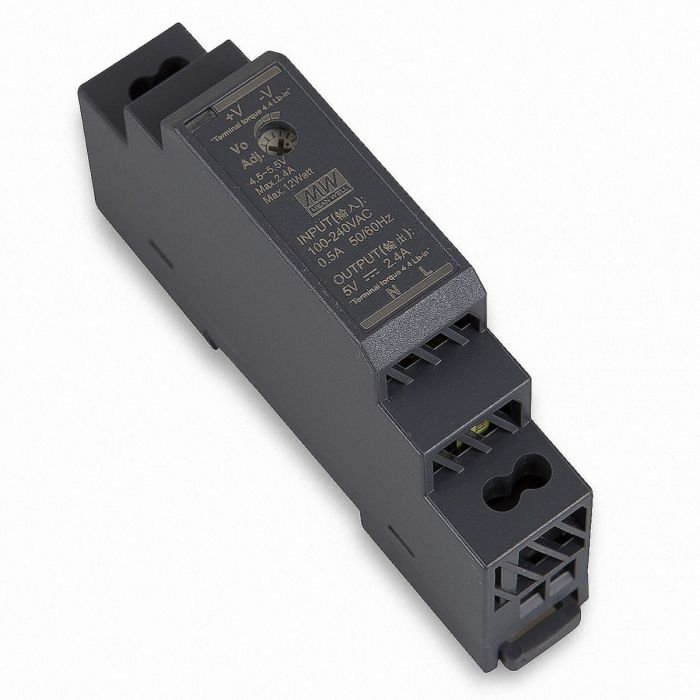

Mean Well HDR-15-5 5V DC 12W Ultra Slim Step Shape DIN Rail Power Supply
Manufacturer: Mean Well
Item No .: HDR-15-5
types: DIN rail mounting Single Output 1-phase power: 15W
Description: Even smaller and more efficient than the first generation (DR series) to
DIN rail power supplies (DIN-rail) in the plastic housing is the new series of HDR Meanwell.
In particular, in the building automation and home control the power supplies come with 15W is used,
the protection class II correspond. The HDR family of Mean Well has a step-shaped plastic housing has
an input voltage range of 85 to 264VAC (277VAC also available) and offers models with 5V, 12V, 15V, 24V and 48V.
Thanks to slim design, the height measures only 90mm, the width 1SU (17.5mm). They can be on the standardized
DIN rail TS-35 / 7.5 and TS-35 / assemble 15th To their properties also include a low idling consumption of <0.3W,
a high efficiency of up to 91%, and an adjustable DC output voltage and a broader operating temperature
range (-30 to +70 ° C). Also, an LED display for operation is available. The HDR series Meanwell meets the
European standard DIN EN43880, the rules of the European Union for harmonic current according to EN61000-3-2 Class
A and all safety specifications to UL60950-1, UL508 and EN61558-2-16.
Features: Adjustable
Leistungmax .: 12 W
AbmessungBreitein mm 54.5 mm
AbmessungHöhein mm: 90 mm
AbmessungLängein mm 17.5 mm
protection:
protection class: II Search facilities: directly on the DIN-rail mountable
enclosed case, Touch screw
Universal input
overload protection, current limiting, auto recovery
protected against short circuit, overload, over voltage
low idle power
LED indicator for power on
insulation class II
connections: screw
number of outputs: 1 | number of inputs: 1 | execution:
Ausgangsspannungmax .: 5.5 V / DC
Ausgangsspannungmin .: 4.5 V / DC
output current max .: 2.4 A output current
input voltage Max: 264 V / AC
input voltage min: 85 V / AC
Package Included:
1 Piece of Mean Well HDR-15-5 5V DC 12W Ultra Slim Step Shape DIN Rail Power Supply
2 Years Warranty
CE and RoHS approved
