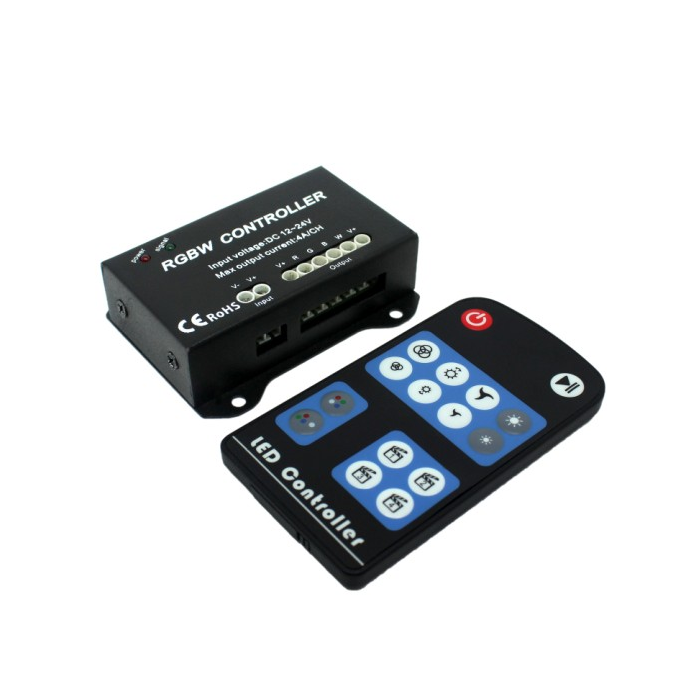

RF104 RGBW 4 Channel DC 12-24V Leynew LED Controller 2pcs
I. Summarization
RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports switch the mode
from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from 39 kinds small mode;
This controller can control RGB and RGBW lamps, users no need to purchase a variety of controller, then can achieve the
ffect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach.
II. Technical parameters
Working temperature: -20-60℃
Supply voltage: DC 12-24V
Ouput voltage: DC 12-24V
Output connect way:common anode (6 line with 4 loop)
External dimension: L76.6*W59*H22.2 mm
Packing size:L103*W70*H43 mm
Net weight: 0.133kg
Gross weight: 0.152kg
Remote control static state current: <10uA
Maximum output current : 4*4A
Maximum output power: 192W/12V 384W/24V
Remote control distance: <=25M
Package Include:
2 Pieces of RF104 RGBW 4 Channel DC 12-24V Leynew LED Controller
2 Pieces of Product Manual
