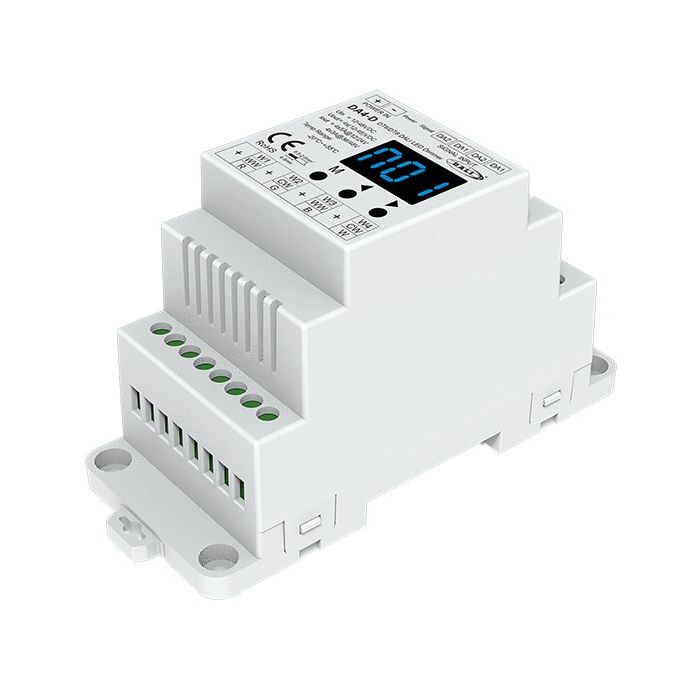

Skydance Controller DA4-D Din Rail DT6 DT8 4CH 5A 12-48VDC CV DALI Dimmer LED Control Driver

DA4-D

4 Channel Constant Voltage DALI LED Dimmer

4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.

DT6 dimming or DT8-TC color temperature or DT8-RGB or

DT8-RGBW light type selectable.

For DT6 dimming, support 1-4 DALI address, 4 channel work separately.

In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207,

IEC 62386-209 and in compliance with DALI products

from other international incorporation.

DALI address can be manually assigned and shown in digital display

or automatically assigned by DALI master.

Connect with external AC push switch to achieve on/off, brightness,

color temperature and RGB color adjustment.

PWM digital dimming, standard DALI logarithmic dimming curve.

PWM frequency 1000/2000/4000/8000/16000Hz selectable.

Over-heat / Over-load / Short circuit protection, recover automatically.

With fast self-testing function.

White & Black available.

Package Included:

1 Piece of Skydance Controller DA4-D Din Rail DT6 DT8 4CH 5A 12-48VDC CV DALI Dimmer LED Control Driver


CE and RoHS approved
