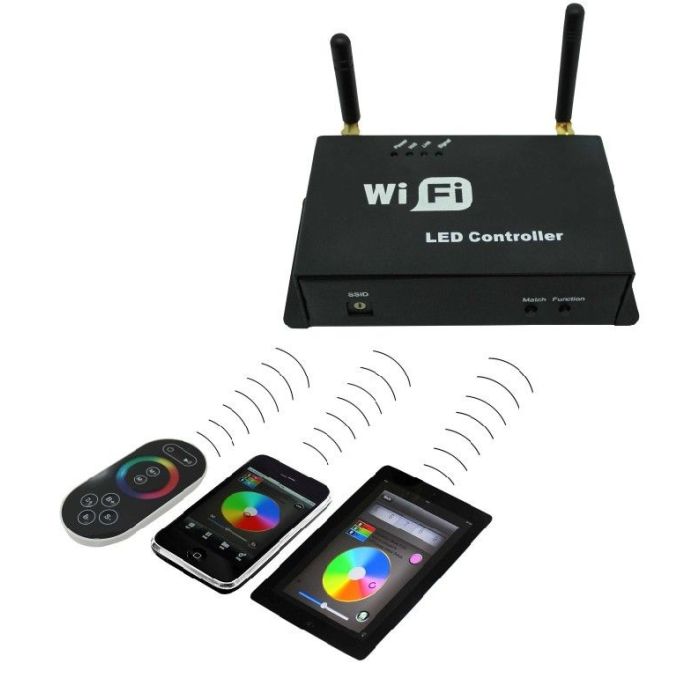

WIFI100 WiFi Single Point DC 5-24V Leynew LED Controller
Summarization
LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is
birth of market and customer's demand, it is one type controller which integration the newest wifi
technical in the market. It makes the LED control more convenience, more hommization. We can use
an Android system or IOS system mobile phone to install control software, then it can control LED, this
is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in
building can control more than 50m, in outdoor can control more than 100m.
In the condition of not use the mobile software, also can use the remote control to control, very convenience,
bring many choices for you.
Technical Parameters
1. Remote control technical parameters
Working temperature：-20-60℃
Power supply method：AAA*3
Supply voltage：1.5V*3
Standby power：0.015mW
Standby current：3uA
Working current：200uA
Emission current：10mA
Remote control distance：about 20m
Standby time：6 month
2. Software technical parameters
Name：Dream Color
Runtime platform：Android version support Android system(better one can support
Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.
Byte: Android version(622K)、IOS version(581K).
Language: English
Category: communications
Free, green, no plug-ins
3. Controller technical parameters
Working voltage: DC5--24V
Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
Output current: 4A*3
Connect mode: common anode
External dimension: L107*W65*H30（mm）
Receiving sensitivity: 802.11b DSSS(-5dBm)，802.11b CCK (-10dBm)，802.11g
OFDM(-15dBm)
Package Include:
1 Piece of WIFI100 WiFi Single Point DC 5-24V Leynew LED Controller
1 Piece of Product Manual
Great Choice for Green Life, CE and RoHS Approved
CE and RoHS approved
